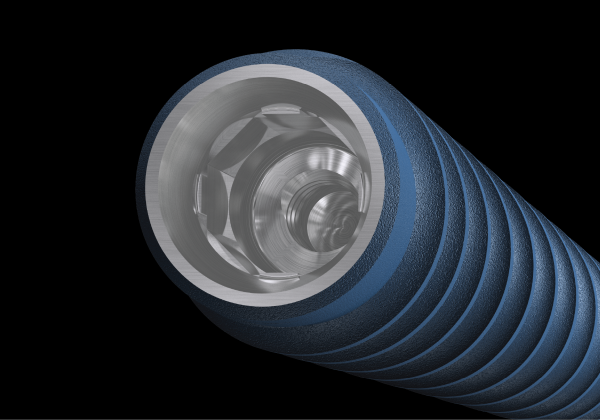

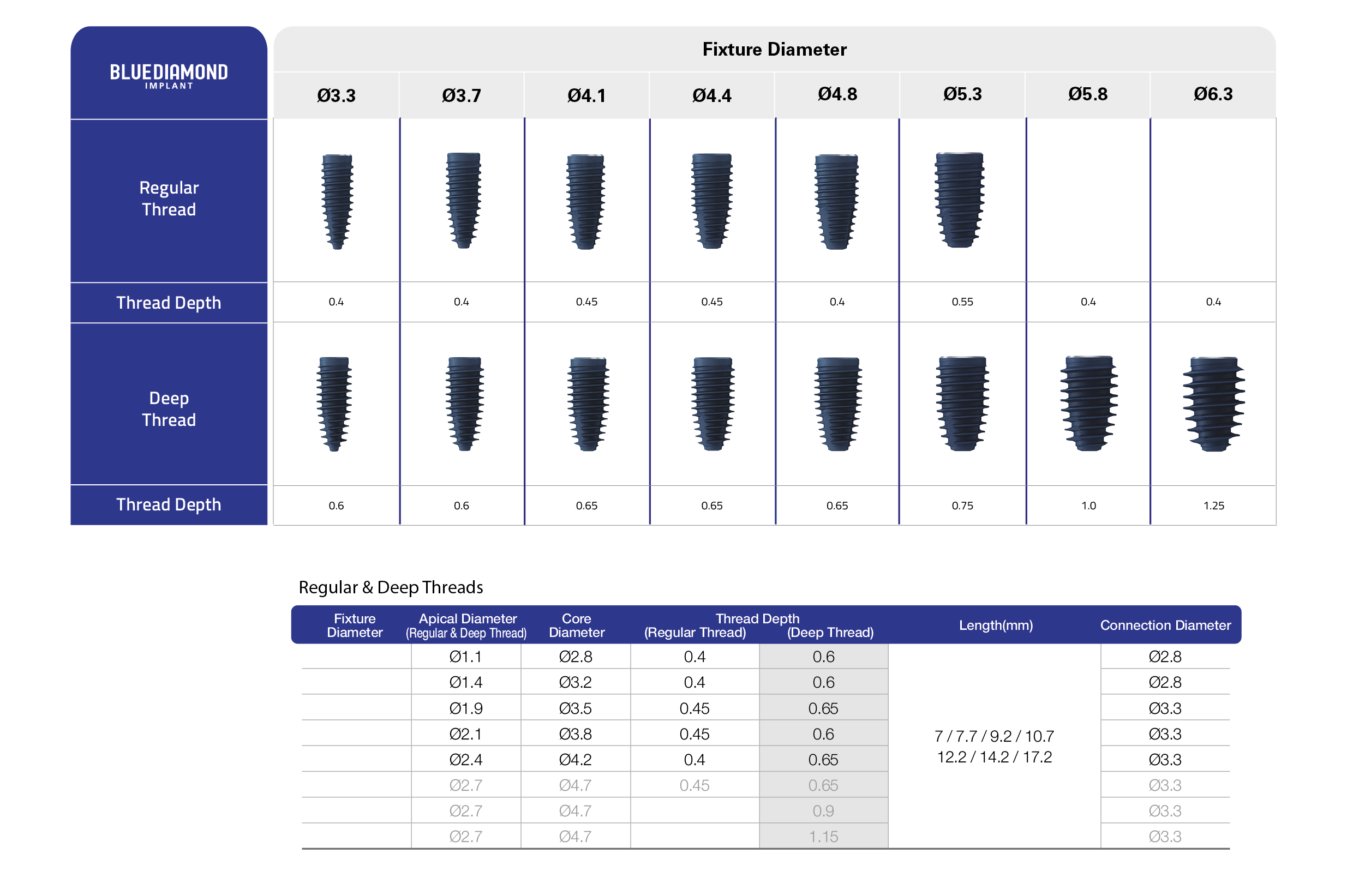

Fixture Design

A choice of thread depths, regular or deep, combined with the distinctive KnifeThread®️ design, allows straightforward implant placement and reliable primary stability across all bone densities.
Regular thread: recommended for dense bone (D1 and D2)
Deep thread: recommended for soft bone or reduced bone density (D3 and D4)

Minimaly Invasive

Preserves Existing Bone for Improved Long-Term Outcomes

BLUEDIAMOND®️ implants are engineered to achieve primary stability without excessive dependence on cortical bone. This helps reduce stress on the cortical plate and may minimise bone resorption following fixture placement.

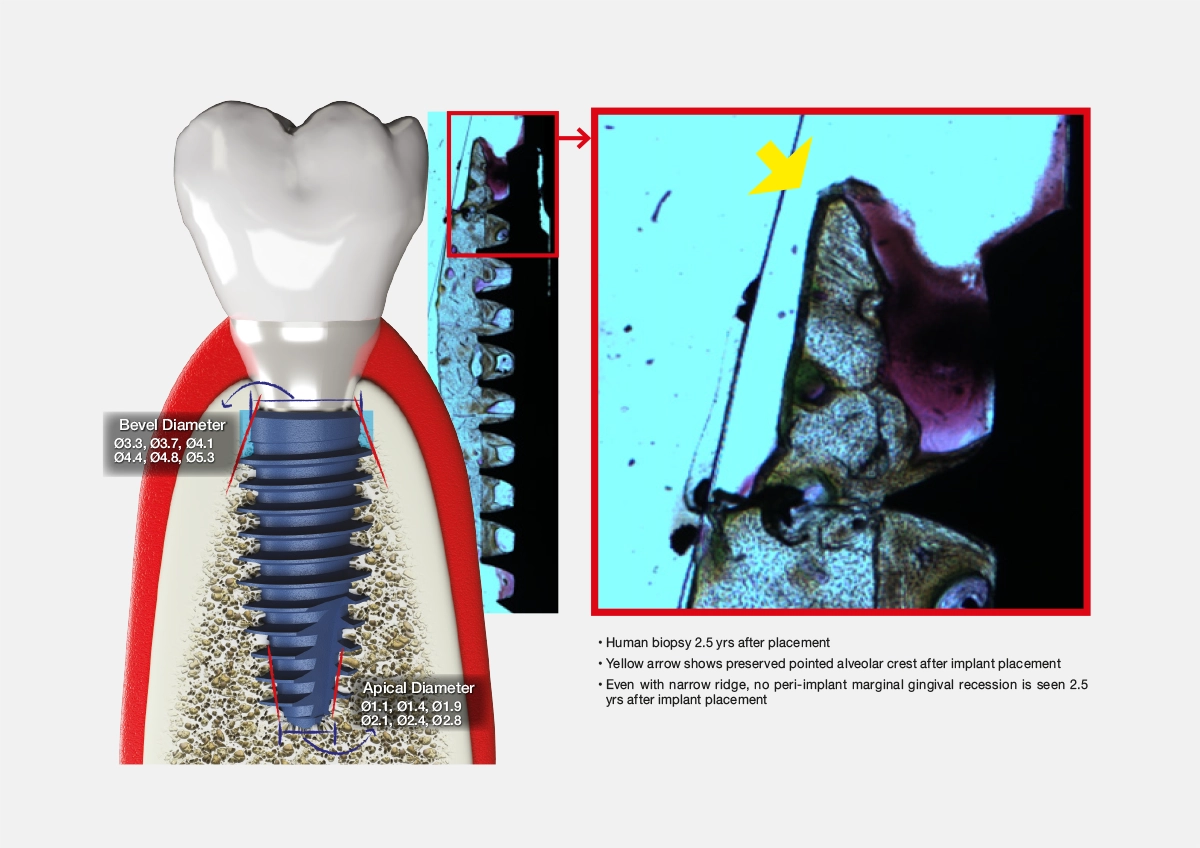

Maximum Cortical Bone Preservation

Designed to minimise loading on the cortical bone during implant placement, helping to reduce the risk of post-operative bone resorption. The advanced coronal design supports optimal preservation of cortical bone around the implant. Greater cortical bone preservation may contribute to increased soft tissue volume and an enhanced gingival profile.

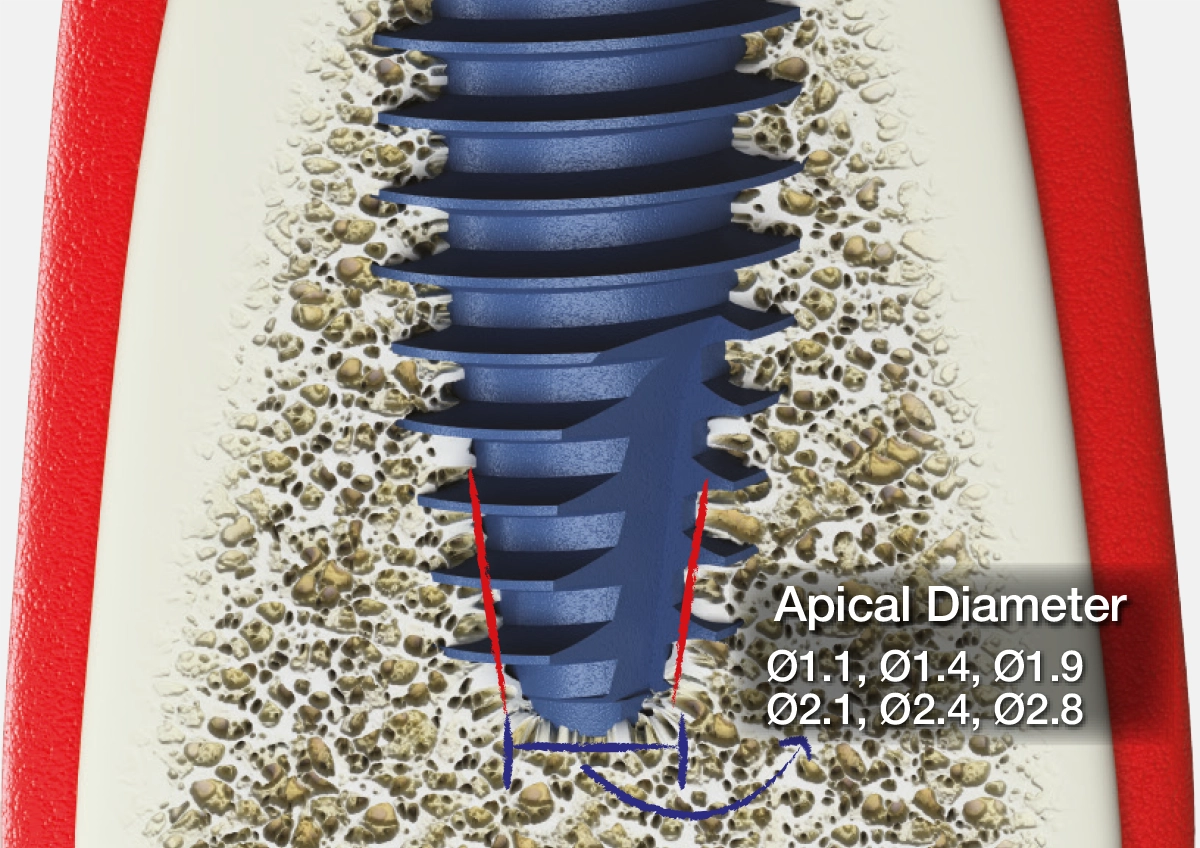

Narrow Apical Diameter for Minimally Invasive Placement

The narrow apical diameter of BLUEDIAMOND®️ implants enables the placement of a wider fixture in a narrow alveolar crest, helping to preserve surrounding hard and soft tissue while supporting a minimally invasive surgical approach.

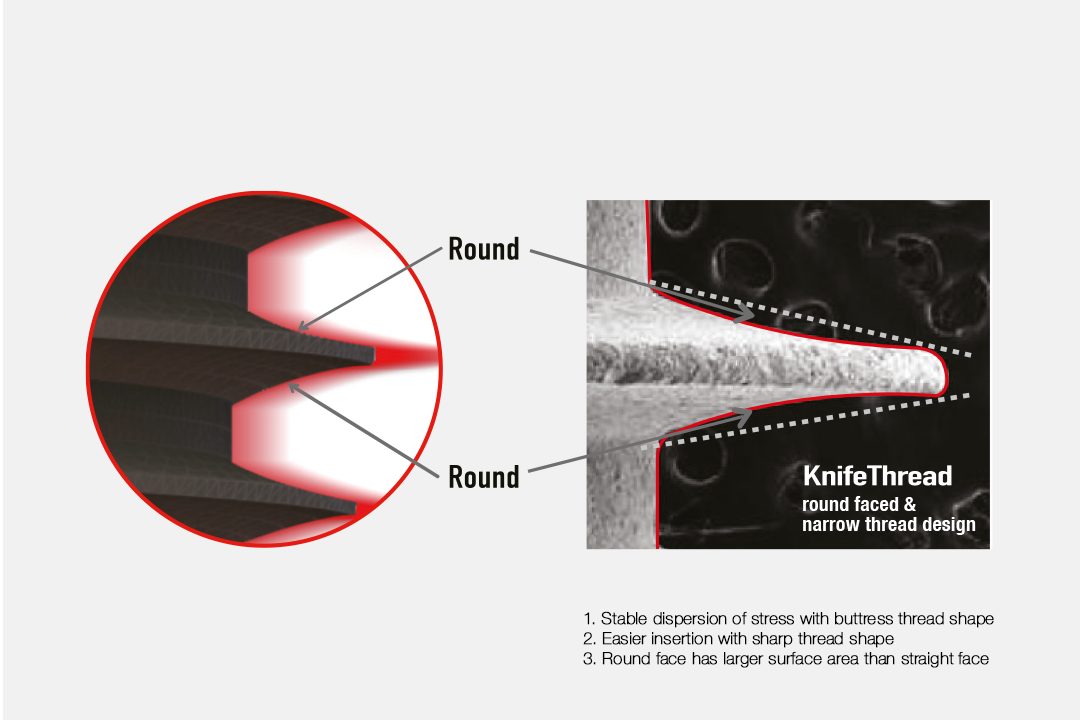

KnifeThread ®

Supports Sustained Implant Stability

MegaGen’s distinctive KnifeThread®️ and advanced self-tapping design help achieve strong primary stability, even in compromised bone conditions.

High Immediate and Sustained ISQ Values

Ensures a high level of implant stability, supporting the immediate loading of prosthetic restorations.

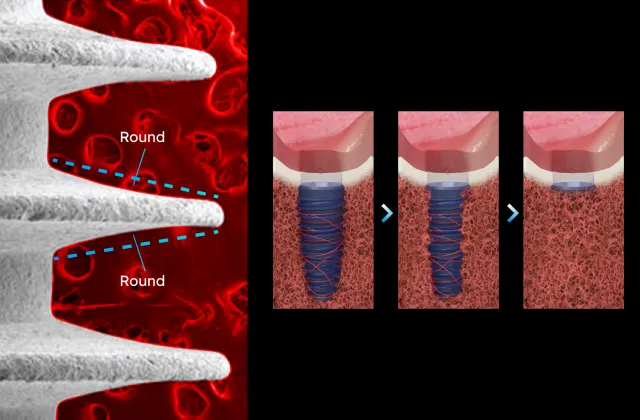

Sufficient Space for Angiogenesis

Creates the conditions for efficient blood vessel formation, helping to enhance blood supply and promote faster osseointegration.

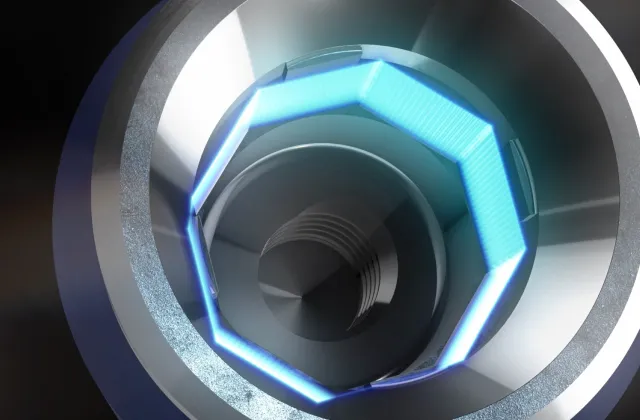

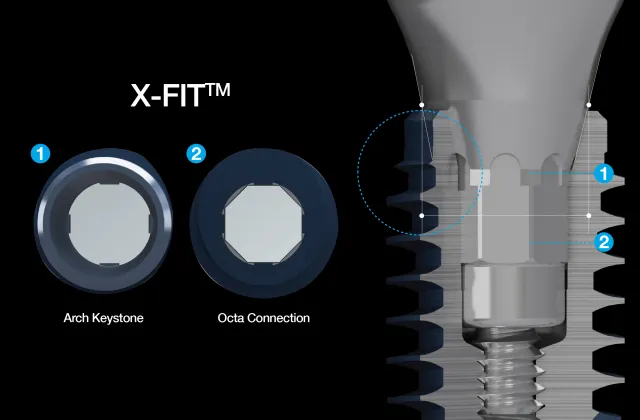

Experience the X-FIT™ Advantage

BLUEDIAMOND IMPLANT®️ incorporates the distinctive X-FIT™ connection, which combines a 15° internal conical connection with a double-fastened internal structure in a keystone arch and octa configuration. This advanced design enables precise positioning, reliable prosthetic connection, long-term mechanical stability, and reduced biologic width.

Double-Fastening Connection

The combination of an arch-type keystone and octa connection is designed to enhance long-term mechanical stability and provide high resistance to external compressive forces such as those generated during mastication.

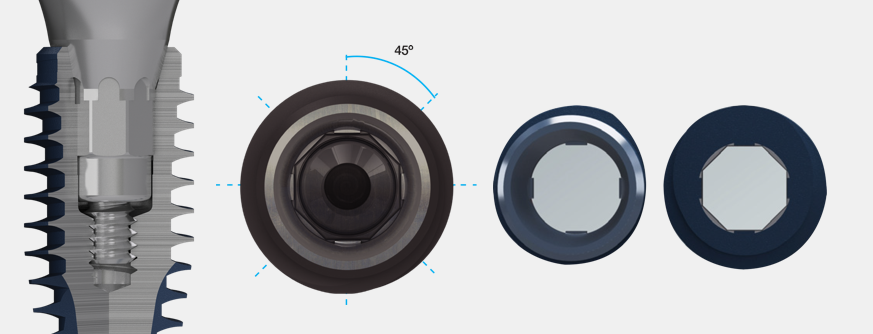

Precise Positioning

The octa connection offers eight prosthetic seating positions, enabling accurate orientation and providing an important advantage in anterior cases where aesthetic precision is essential.

Failsafe Seating

The abutment screw engages only when the abutment is fully seated, helping to ensure correct placement and support long-term stability.

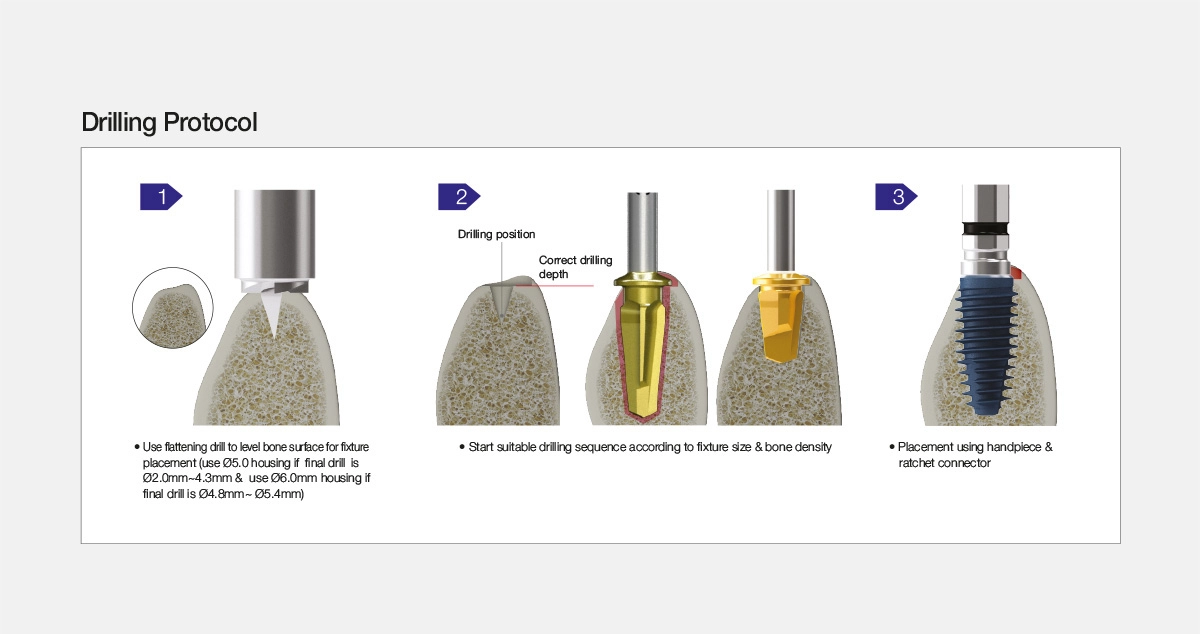

Simple and Intuitive Drilling Sequence

BLUEDIAMOND IMPLANT®️ fixtures are designed to achieve optimal primary stability when used with a guided drilling sequence. The surgical procedure is simplified by a clear drilling protocol based on fixture diameter and bone density.
