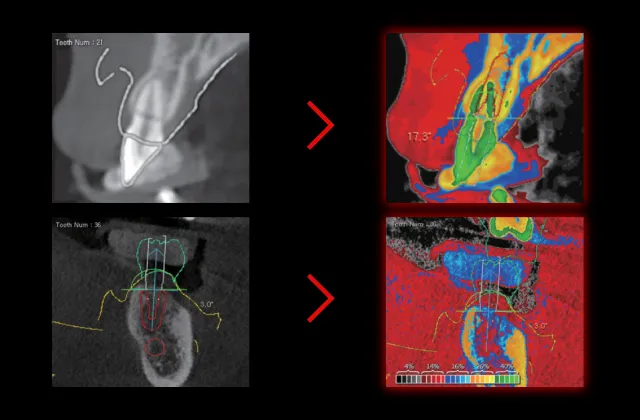

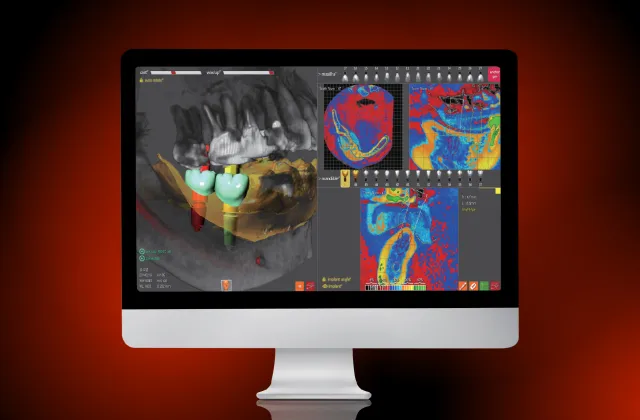

Color-Coded Analysis of bone morphology & density

While CBCT has 256 grayscale tones, our eyes can only see 16 shades. Windowing converts these grayscale variations into vivid, uniformly calibrated colors, known as the Digital EYE. This aids in bone health assessment, precise implant procedures, and predicting initial stability for immediate loading.

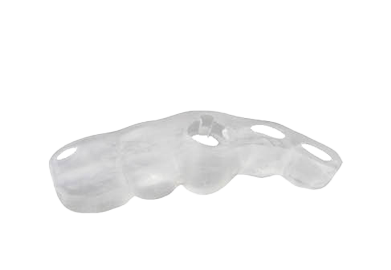

Innovative Guide Design convenient & precise implant surgery

One-body guide that has drill hole(s), drill stopper(s), and hex control. Guide does not have metal sleeves or spoons. Guide is 3D printed based on approved treatment plan.

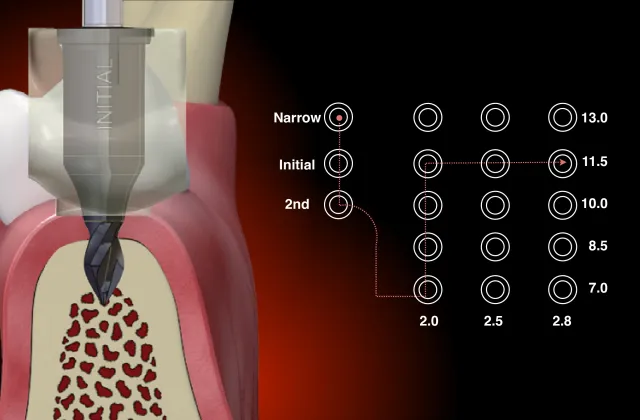

Individualized Drilling Protocols for maximum BIC

Recommended drilling sequences are provided to achieve optimal initial fixation based on bone quality analysis.

How is this achieved?

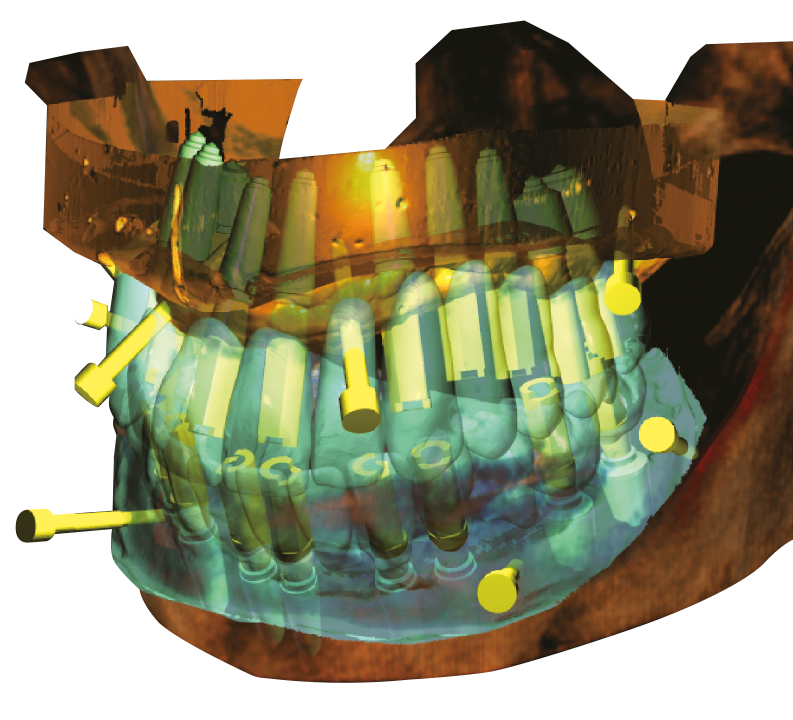

As R2GATE® treatment planning & guided surgery enable pre-fabrication of customized prosthetics. BEFORE surgery, this reduces chair-time, minimizes surgical procedures, and allows for immediate loading.

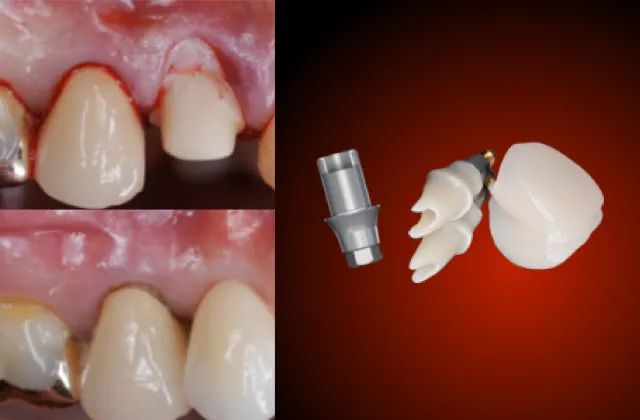

Cemented

1. Stock/customized TiBase abutment

2. 3D-printed or milled PMMA temporary

3. Indication: single or 3-unit bridge

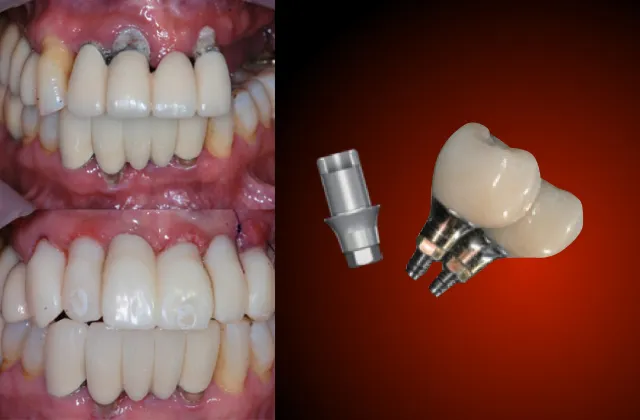

Screw-Retained

1. Stock/customized TiBase abutment

2. 3D-printed or milled PMMA temporary

3. Indication: multi-unit bridge/ non-hex

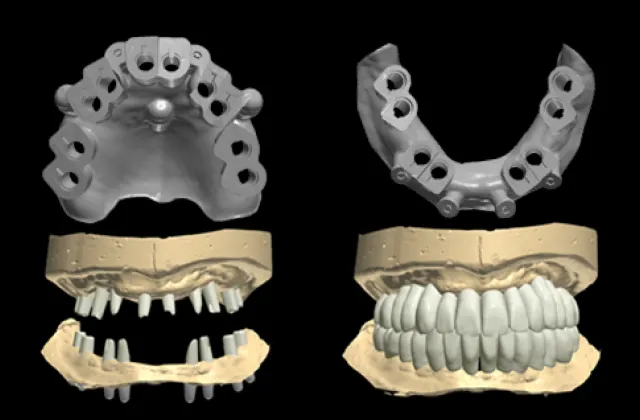

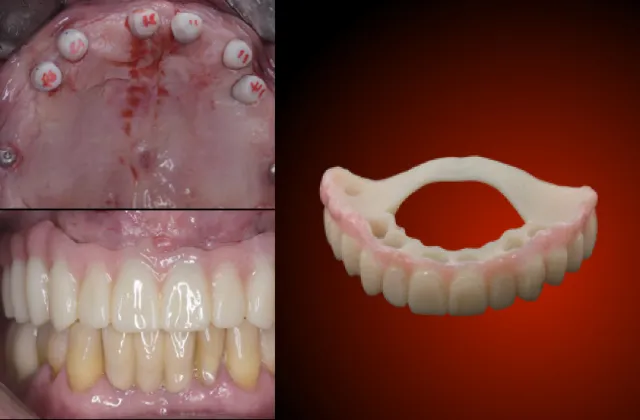

Denture-Type

1. Stock/customized TiBase abutment

2. 3D-printed or milled denture

3. Indication: edentulous case
