MegaGen lab analogs are precision-engineered replicas of the implant platform designed for dental laboratory use. They facilitate accurate wax-up and precise casting workflows, simulating the true implant position and orientation in the working model. Compatible with a range of AnyRidge platforms, these analogs ensure reliable transfer from clinical placement to the lab environment, streamlining fabrication of both screw-retained and cement-retained prostheses. Used for crown, bridge, full-arch, and overdenture restorations, the Lab Analog reproduces the original implant interface to guarantee precise fit and prosthetic stability.
→ Exact replication of implant connection geometry
→ Accurate platform positioning in laboratory models
→ Compatible with fixture-level and abutment-level prosthetics
→ Supports analog and digital workflows
→ Ensures passive fit and prosthetic precision
×
System Compatibility
Each Lab Analog is manufactured to match the specific connection type and geometry of the corresponding MegaGen implant system.
×
BlueDiamond®
Optimized for immediate placement, digital planning workflows, long-term mechanical stability.
The Lab Analog replicates the Octa positioning interface for precise digital and conventional restorations.
Connection: Octa positioning with Keystone indexing Material concept: Pure Grade 4 titanium implant system Fixture diameters: Ø3.3 – Ø6.3 Thread options: Regular & Deep
×

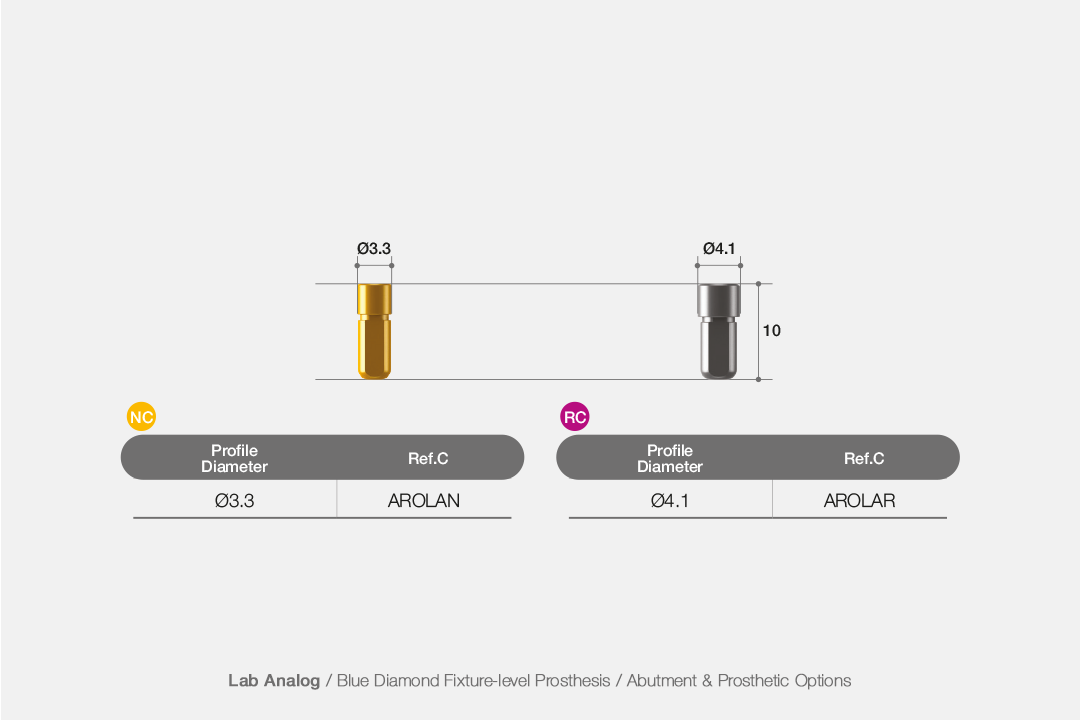

Implant Level Lab Analog
Replicates fixture
Gold analog for NC Connection fixture
Silver analog for RC Connection fixture
Designed for immediate loading cases, molar immediate placement, full-arch rehabilitation, high primary stability situations.
The Lab Analog reproduces the internal conical interface and Octa positioning for precise prosthetic fabrication.
Connection: Internal conical connection with Octa indexing “Magic 5°” Core diameters: 2.8 – 4.8 mm (depending on tooth position) Fixture diameters: Ø3.5 – Ø8.0 Thread options: Regular, Deep, Extra Deep
×

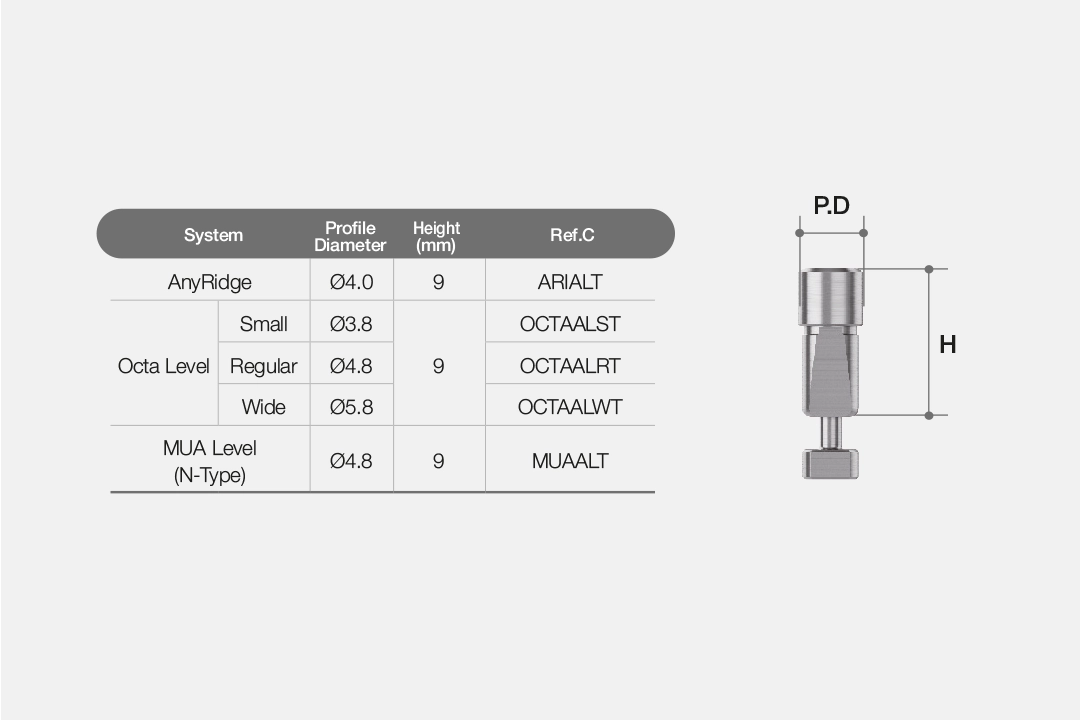

Implant level Lab Analog
Analog Screw(ALS18) included.
For Chairside/ Labside
Surpporting Dental CAD
- 3Shape
- exocad
2 piece type
AnyOne®
Ideal for simplified prosthetic workflows, crown & bridge restorations, multi-unit cases.
The Lab Analog replicates the 11° internal hex interface and single platform design.
Connection: 11° internal hex
Single prosthetic platform concept Fixture diameters: Ø3.5 – Ø7.0 (Regular & Deep thread options) Lengths: 7.0 – 14.5 mm
×

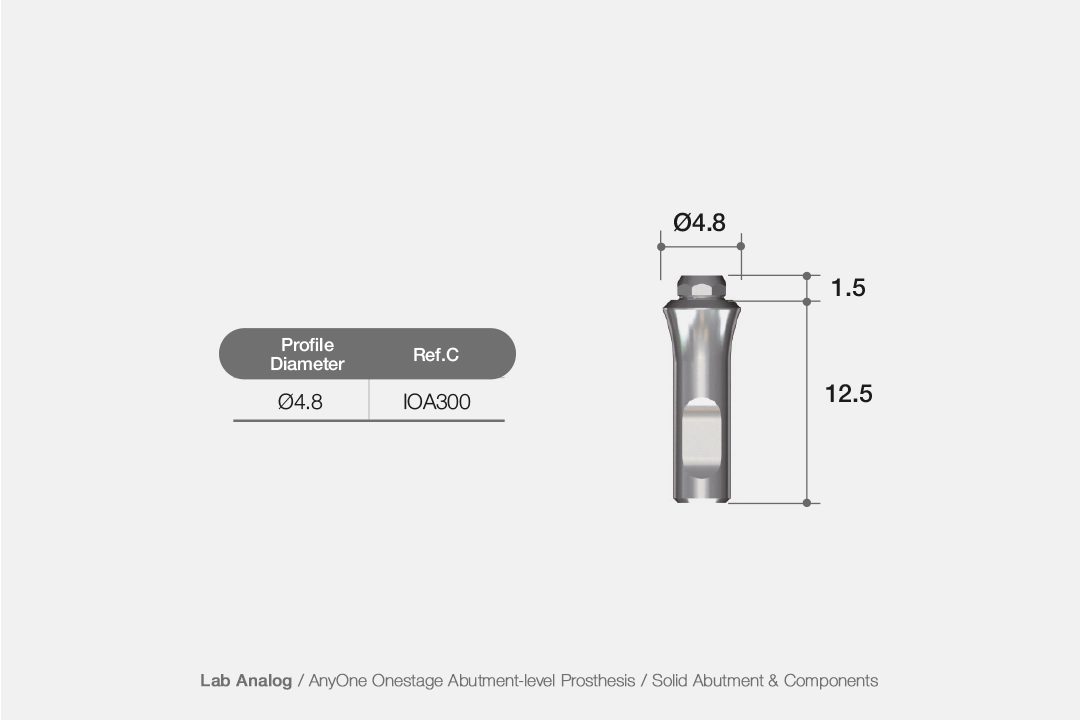

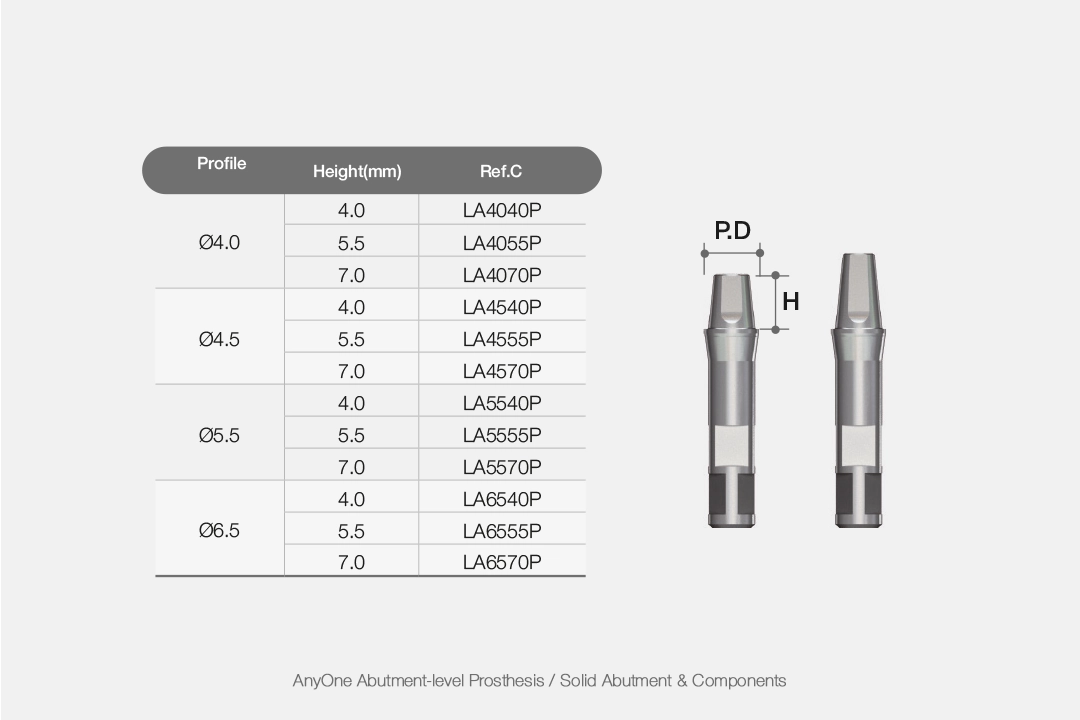

Solid Abutment Lab Analog
Used for Solid Abutment. Used only if Solid Abutment was not modified.
Suitable for one-stage surgery protocols, abutment-level restorations, overdenture prosthetics.
The Lab Analog mirrors the Octa connection and transgingival geometry for accurate laboratory work.
Indicated for economical treatment solutions, fixture-level prosthetics, two-stage or non-submerged protocols.
The Lab Analog reproduces the 11° internal hex geometry and platform-specific interface.
Connection: 11° internal hex Platforms: Mini (Ø3.5) and Regular (Ø4.0 – Ø5.0) Thread design: Double thread + KnifeThread
×
Implant level Temporary Abutment
To fabricate provisional restorations post area is designed to increase adhesive property of resin.
Recommended torque: Mini 20Ncm/ Regular 25Ncm
Abutment Screw is included
(Mini: STABSM / Regular: STABSS)
Clinical Benefits
→ Accurate reproduction of implant position
→ Reduced prosthetic misfit
→ Predictable passive fit
→ Seamless integration into laboratory workflow
→ Reliable support for both conventional and digital prosthetics
×
